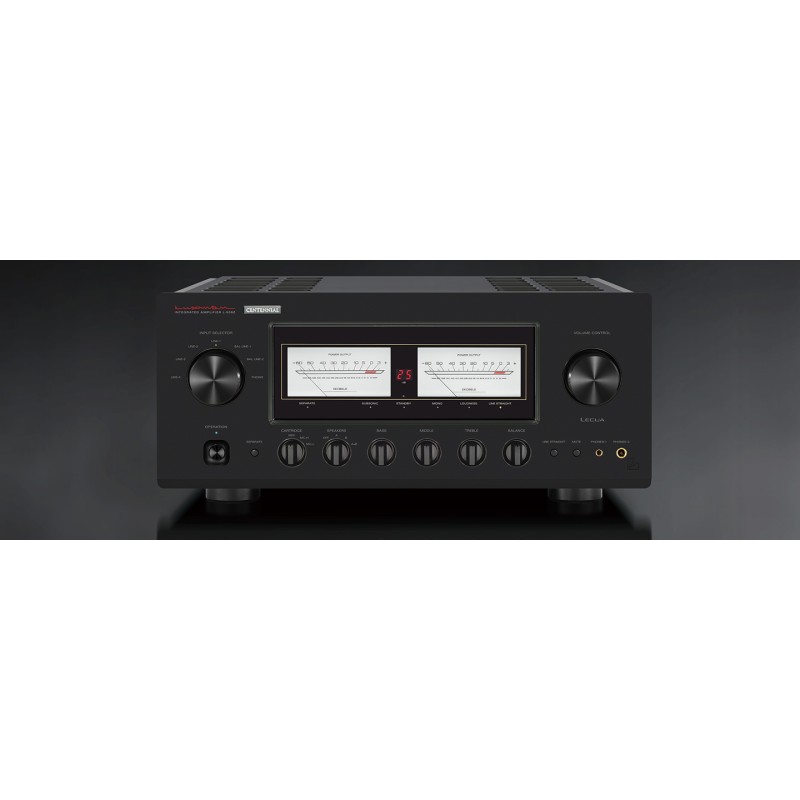

LUXMAN L-509Z BLACK EDITION CENTENNIAL
14.490,00 €
Tasse incluse
Consegna 1/3 giorni
AMPLIFICATORE INTEGRATO BLACK EDITION CENTENNIAL
Our privacy policy
Our Privacy Policy explains our principles when it comes to the collection, processing, and storage of your information. This policy specifically explains how we employ cookies, as well as the options you have to control them.
-
1 What are cookies?
Cookies are small pieces of data, stored in text files that are stored on your computer or other device when websites are loaded in a browser. They are widely used to "remember" you and your preferences, either for a single visit or for multiple repeat visits
-
2 How we use cookies
We use cookies for a number of different purposes. Some cookies are necessary for technical reasons; some enable a personalized experience for both visitors and registered users; and some allow the display of advertising from selected third party networks.
-
3 Controlling Cookies
Visitors may wish to restrict the use of cookies or completely prevent them from being set. If you disable cookies, please be aware that some of the features of our service may not function correctly
-
4 Information We Collect
We only collect information about you if we have a reason to do so-for example, to provide our services, to communicate with you, or to make our services better.
We are committed to maintaining the trust and confidence of our website visitors. We do not collect, sell, rent or trade email lists or any data with other companies and businesses. Have a look at our Privacy Policy page to read detail information on when and why we collect your personal information, how we use it, the limited conditions under which we may disclose it to others and how we keep it secure.
We may change Cookies and Privacy policy from time to time. This policy is effective from 24th May 2018.
DETTAGLI
| Rated output | 120W + 120W (8Ω) 220W + 220W (4Ω) |
|---|---|
| Input sensitivity/ input impedance |
PHONO (MM): 2.5mV/47kΩ PHONO (MC-H): 0.3mV/100Ω PHONO (MC-L): 0.1mV/40Ω LINE: 180mV/47kΩ BAL.LINE: 180mV/79kΩ MAIN IN: 1.1V/47kΩ |
| Output voltage | PRE OUT: 1V |
| Frequency response | PHONO: 20Hz to 20kHz (±0.5dB) LINE: 20Hz to 100kHz (within -3dB) |
| Total harmonic distortion | 0.007% or less (8Ω, 1kHz) 0.03% or less (8Ω, 20Hz to 20kHz) |
| S/N ratio (IHF-A) | PHONO (MM): 87dB or more PHONO (MC-H): 70dB or more PHONO (MC-L): 62dB or more LINE: 106dB or more |
| Volume adjustment | LECUA-EX |
| Amplification feedback circuit | LIFES 1.0 |
| Output configuration | Bipolar 4-parallel push-pull |
| Damping factor | 330 |
|---|---|
| Max. amount of tone control | BASS: ±8dB at 100Hz TREBLE: ±8dB at 760Hz TREBLE: ±8dB at 10kHz |
| Power supply | 230V~(50Hz) / 115V~(60Hz) |
| Power consumption | 390W 150W (under no signal), 0.5W (at standby) |
| External dimensions | 440(W) x 193(H) x 463(D) mm front side knob of 20mm and rear side terminal of 37mm included in depth |
| Net weight | 29.4kg (main unit) |
| Accessories | Remote control (RA-17A) Power cable |
| Speaker terminal Supported Y-lug terminal dimension |
Width of part a: 16mm or less Width of part b: 7mm or more
* Connection may not be performed
depending on the shape of the Y-lug terminal. |
L-509Z BLACK EDITION CENTENNIAL
