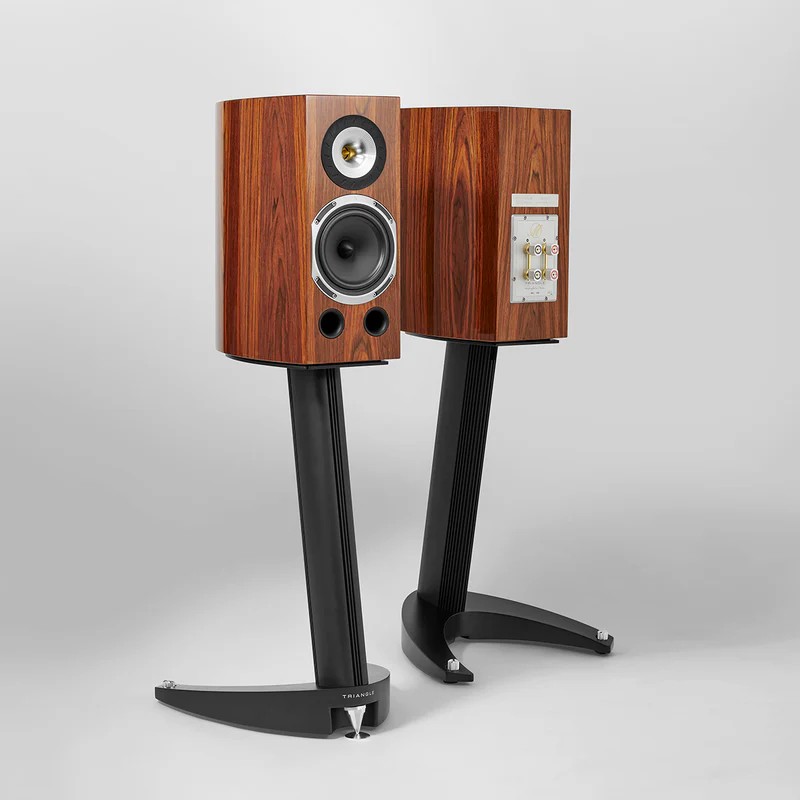

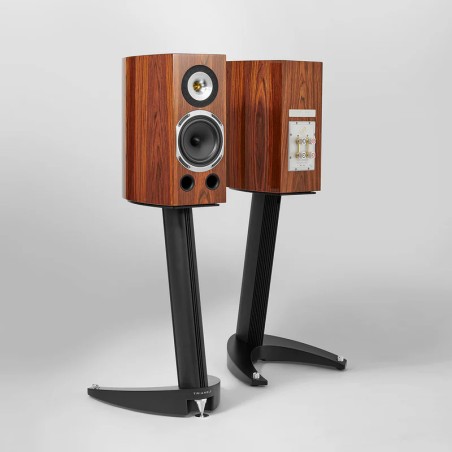

TRIANGLE MAGELLAN DUETTO 40th ANNIVERSARY

Liveliness and dynamics are trademarks of TRIANGLE’s sound, and they are packed into this gem, the Duetto, a compact 2-way bookshelf speaker.

Superb piece of engineering, its horn-loaded tweeter TZ2900 is equipped with a next generation dome in magnesium alloy. This transducer highlights the finest details of your recordings and brings out the subtlety of the upper harmonics.

Its full-range 16 cm midrange/bass driver produces rich bass details. It features a new paper cone that reproduces any vocal register with great neutrality without the slightest coloration. The Duetto speaker offers a really clear sound and puts the music forward.

Its elaborate crossover, equipped with high quality components, optimizes the bass and treble phasing for an outstanding transparency.

This compact speaker fits perfectly in rooms of less than 30m2, a technological achievement for a speaker consisting of only two drivers, The Duetto is supplied with an accessory box for an adapted decoupling. The S08 speaker stand, designed specifically for this model, is available as an option.

The Duetto 40th is recommended for listening rooms with an area between 15 and 40 m2.

Find a model in the Magellan 40th range that suits your listening room:

• from 15 to 40m2: Duetto 40th
• from 20 to 50m2: Cello 40th
• > 30m2: Quatuor 40th

Recommended Amplifier power : from 30 to 200 Watts (8 Ohms)
Power Handling : 80W

* The power handling of a speaker is the average continuous power that the speaker can accept without damaging the drivers. You can use an amplifier more powerful than the permissible speaker power by limiting the volume to 70% of the maximum capacity. Conversely, an amplifier that is too underpowered will clip and create distortion, which can also damage the speakers if it is used beyond its capacity.

Type : Floorstanding speakers with front bass reflex port
• Crossover : 2 Ways
• Sensitivity (dB/W/m) : 88dB
• Bandwith (+/-3dB Hz) : 40Hz-30 000Hz
• Nominal impedance : 8Ω
• Minimum impedance : 3,4Ω

* The impedance of a speaker can be simplified as an electrical resistance. The lower is the impedance of the speaker, the more current the amplifier will have to deliver.
- Nominal impedance is measured at a frequency of 1kHz
- Minimum impedance is measured at low frequencies.

TRIANGLE loudspeakers never fall below 3 Ohms, which means they can be used with almost all Hi-Fi and Home Cinema amplifiers.

2 Drivers:
• 1 x TZ2900PMMG : 1 inch Magnesium Dome tweeter with horn process
• 1 x T16GM-MT10-GC1-V2 : 6,5 inch medium with natural paper cone and fabric surround

Crossover Frequencies : 3100Hz

Speaker dimensions
• Width : 250 mm
• Height : 460 mm
• Depth : 350 mm

Box dimension (per unit) : (W x H x D): 680 x 625 x 515 mm

Weight
• Net weight : 16,8 kg
• Gross weight : 40,5 kg

• 8 x counter spike
• 1 x Certificate of authenticity
• 1 x Microfiber maintenance fabric
• 2 x Pair of gloves for handling
• 1 x Magnetic protection grille
