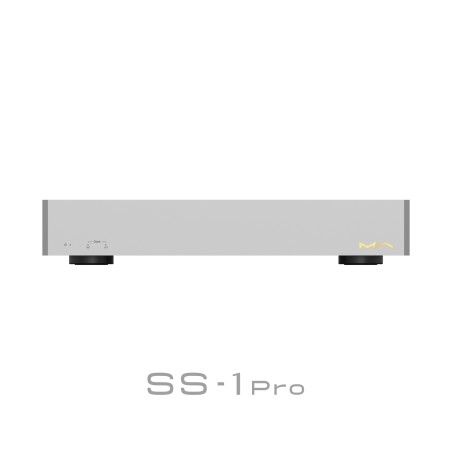

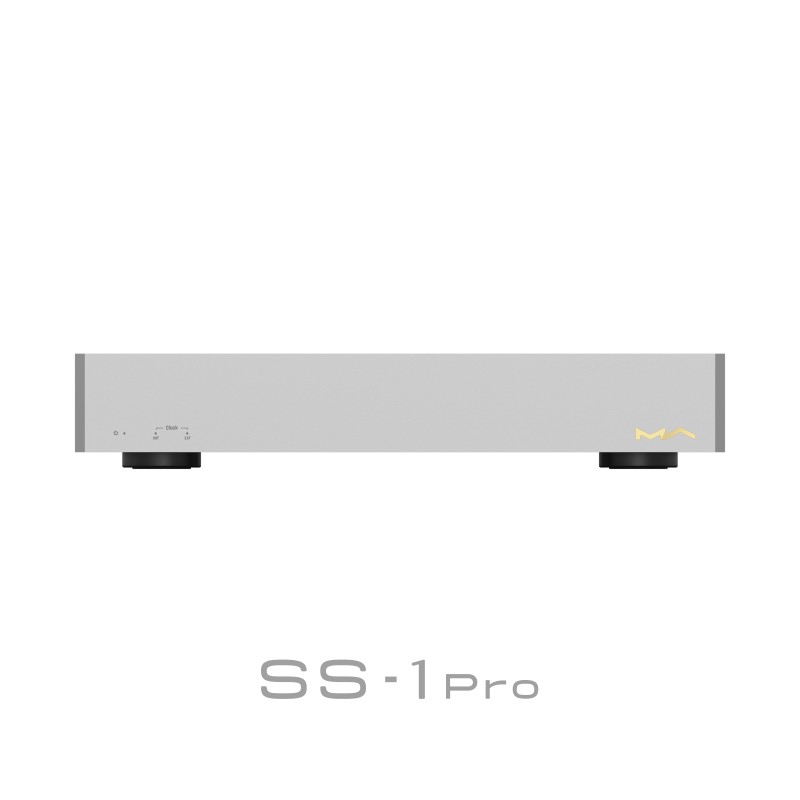

MATRIX AUDIO SS-1 PRO
2.099,00 €
Tasse incluse
Consegna 1/3 giorni
SWITCH DI RETE AUDIO-GRADE
Our privacy policy
Our Privacy Policy explains our principles when it comes to the collection, processing, and storage of your information. This policy specifically explains how we employ cookies, as well as the options you have to control them.
-
1 What are cookies?
Cookies are small pieces of data, stored in text files that are stored on your computer or other device when websites are loaded in a browser. They are widely used to "remember" you and your preferences, either for a single visit or for multiple repeat visits
-
2 How we use cookies
We use cookies for a number of different purposes. Some cookies are necessary for technical reasons; some enable a personalized experience for both visitors and registered users; and some allow the display of advertising from selected third party networks.
-
3 Controlling Cookies
Visitors may wish to restrict the use of cookies or completely prevent them from being set. If you disable cookies, please be aware that some of the features of our service may not function correctly
-
4 Information We Collect
We only collect information about you if we have a reason to do so-for example, to provide our services, to communicate with you, or to make our services better.
We are committed to maintaining the trust and confidence of our website visitors. We do not collect, sell, rent or trade email lists or any data with other companies and businesses. Have a look at our Privacy Policy page to read detail information on when and why we collect your personal information, how we use it, the limited conditions under which we may disclose it to others and how we keep it secure.
We may change Cookies and Privacy policy from time to time. This policy is effective from 24th May 2018.
DETTAGLI
Standards and Protocol
|
IEEE 802.3：10BASE-T IEEE 802.3 u：100BASE-X IEEE 802.3 z：1000BASE-T IEEE 802.3 ab：1000BASE-T IEEE 802.3 ae：10G BASE-SR/LR IEEE 802.3 bz：2.5G/5G BASE-T IEEE 802.3 cb：2500BASE-X |
Ports
| SS-1 Pro |
2x 100Mbps/10Mbps RJ45 6x 2.5Gbps/1Gbps/100Mbps/10Mbps RJ45 2x 10Gbps SFP/SFP+ |
| SS-1 |
2x 100Mbps/10Mbps RJ45 4x 2.5Gbps/1Gbps/100Mbps/10Mbps RJ45 2x 10Gbps SFP/SFP+ |
External Clock Input
|
Exclusive on SS-1 Pro |
10MHz / 50Ω impedance / Sine wave or square wave input |
LED Indicators
|
1x LED - Power/Status |
|
|
2x LED - Clock mode (SS-1 Pro only) |
|
|
Each LAN Port has 2 LEDs - Speed, Link & Activity |
Max MAC entries
|
16K MAC address table |
Power Specs
| SS-1 Pro |
AC input Power Supply Type: Auto voltage range linear power supply Power Voltage: AC 100V-120V 50/60Hz / AC 220V-240V 50/60Hz. Voltage auto adaptive. Power Consumption: < 15W |
| SS-1 |
AC input Power Supply Type：Wide voltage input switching power supply Power Voltage: AC 100V-240V 50/60Hz Power Consumption: < 15W DC input External power voltage: DC 12V ±10% External power wattage: Larger than 18W Power plug: Outer diameter 5.5mm; inner diameter 2.1mm (+ for inner, - for outer) |
Weight & size
| SS-1 Pro |
Weight Dimensions
|
3.4kg (7.50 pounds) Width: 330 mm (12.99 inches) Depth: 235 mm (9.25 inches) Height: 58.5 mm (2.30 inches)
|
| SS-1 |
Weight Dimensions |
2.3kg（5.07 pounds） Width: 280 mm (11.02 inches) Depth: 206 mm (8.11 inches) Height: 58.5 mm (2.30 inches)
|
Accessories
|
Power cable *1 Quick start guide *1 Warranty card *1 |
SS-1 PRO
