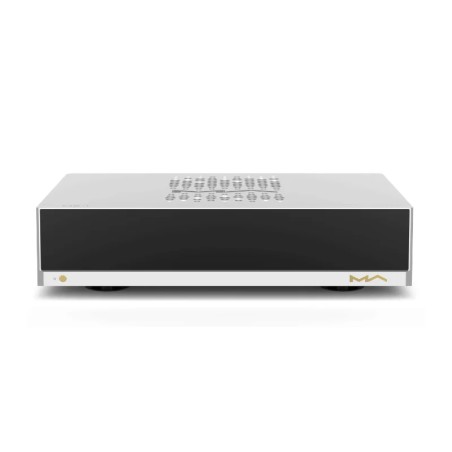

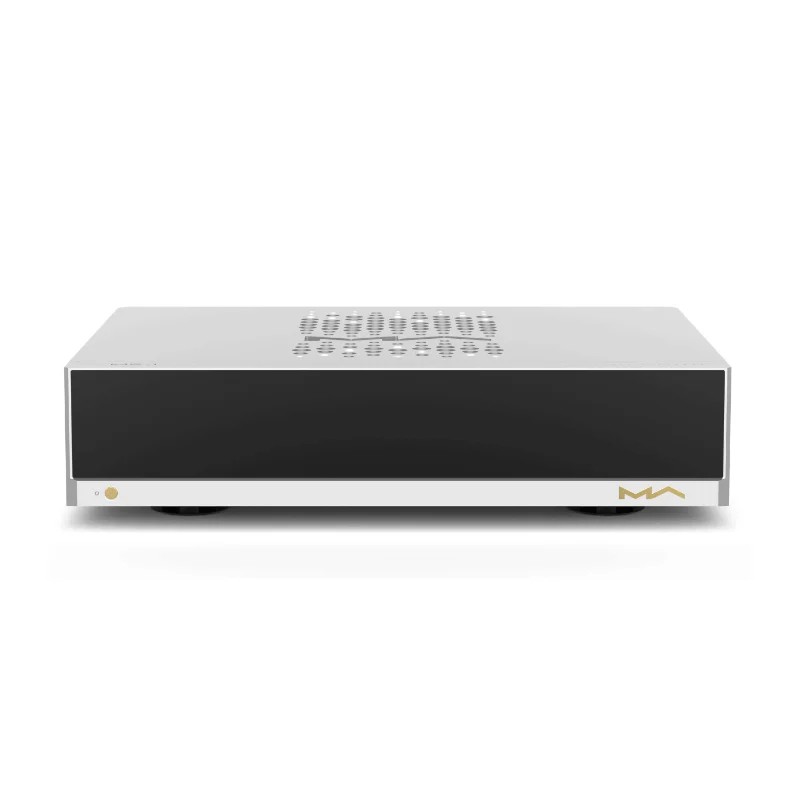

MATRIX AUDIO MS-1 PRE
13.699,00 €
Tasse incluse
Consegna 1/3 giorni
STREAMER DI RETE WIFI HIGH-END CON DAC E PREAMPLIFICATORE INTEGRATO
Our privacy policy
Our Privacy Policy explains our principles when it comes to the collection, processing, and storage of your information. This policy specifically explains how we employ cookies, as well as the options you have to control them.
-
1 What are cookies?
Cookies are small pieces of data, stored in text files that are stored on your computer or other device when websites are loaded in a browser. They are widely used to "remember" you and your preferences, either for a single visit or for multiple repeat visits
-
2 How we use cookies
We use cookies for a number of different purposes. Some cookies are necessary for technical reasons; some enable a personalized experience for both visitors and registered users; and some allow the display of advertising from selected third party networks.
-
3 Controlling Cookies
Visitors may wish to restrict the use of cookies or completely prevent them from being set. If you disable cookies, please be aware that some of the features of our service may not function correctly
-
4 Information We Collect
We only collect information about you if we have a reason to do so-for example, to provide our services, to communicate with you, or to make our services better.
We are committed to maintaining the trust and confidence of our website visitors. We do not collect, sell, rent or trade email lists or any data with other companies and businesses. Have a look at our Privacy Policy page to read detail information on when and why we collect your personal information, how we use it, the limited conditions under which we may disclose it to others and how we keep it secure.
We may change Cookies and Privacy policy from time to time. This policy is effective from 24th May 2018.
DETTAGLI
| Product type | Streamer / DAC |
| DAC chip | 2x AKM AK4499EX + AK4191 |
| Inputs | 1x USB-B 1x Optical Toslink 2x Coaxial 1x I2S LVDS via HDMI 2x USB-A Host port (storage) 1x SSD slot WiFi 1x XLR balanced analog input 1x RCA analog input 1x Phono input |
| Outputs | 1x XLR balanced output 1x RCA output 1x I2S LVDS output via HDMI |
| External clock inputs | 10MHz / 50 ohm clock |
| Trigger | In: DC 6-12V <10mA Out: DC 12V/50mA max. |
| Network | LAN 10/100/1000 Mbps SFP 10/100/1000 Mbps |
| USB-A compatibility (storage) | USB 3.0 5V 1.5A (FAT, FAT32, exFAT, NTFS, compatibility with all storage media not guaranteed) |
| SSD storage expansion | M.2 2280 NVMe PCIe SSD |
| Supported samples rates | Toslink optical and coaxial: PCM up to 24bit 192kHz I2S LVDS: PCM up to 32bit 768kHz, DSD DoP up to DSD256, native DSD up to DSD512 USB-B: PCM up to 24bit 768kHz, DSD DoP up to DSD256, native DSD up to DSD512 and MQA |
| I2S LVDS output sampling rate | PCM up to 32bit 768kHz, DSD DoP up to DSD256, native DSD up to DSD512 |
| Interface | MA player |
| Application | MA Remote App |
| Supported audio formats | MP3, WMA, WAV, AIF, AIFC, AIFF, AAC, FLAC, OGG, APE, ALAC, M4A, DSF, DFF, CUE |
| Supported network protocols | AirPlay 2 DLNA/UPnP TIDAL Connect Spotify Connect vTuner Radio Paradise |
| ANALOG INPUTS | ||
|---|---|---|
| XLR Balanced | Input impedance | 40kΩ |
| SNR | 118dB A-weighted | |
| THD+N | < 0.00026% @ 1k < 0.00030% @ 20Hz-20kHz |
|
| Frequency reponse | 20Hz-20kHz (±0.3 / -3dB @ 46kHz) | |
| Crosstalk | -135dB | |
| Input level | 4.9Vrms Max. | |
| RCA Single-ended | Input impedance | 20kΩ |
| SNR | 110dB A-weighted | |
| THD+N | < 0.00060% @ 1k < 0.00100% @ 20Hz-20kHz |
|
| Frequency response | 20Hz-20kHz (±0.3 / -3dB @ 46kHz) | |
| Crosstalk | -125dB | |
| Input level | 2.35Vrms Max. | |
| Phono | Cell compatibility | MM and MC |
| MM input impedance | 47kΩ/100pF | |
| MM gain | +45dB | |
| MC input impedance | 100Ω | |
| MC gain | +65dB | |
| LINE OUTPUT | ||
|---|---|---|
| XLR Balanced | Output impedance | 20kΩ |
| Output level | 5Vrms Fixed | |
| SNR | 131dB A-weighted | |
| THD+N | < 0.000068% @ 1k < 0.000075% @ 20Hz-20kHz |
|
| Frequency response | 20Hz-20kHz (±0.05 / -3dB @ 85kHz) | |
| Crosstalk | > -150dB | |
| PRE-OUT OUTPUTS | ||
|---|---|---|
| XLR Balanced | Output impedance | 40Ω |
| Output level | 0-16Vrms Variable | |
| Gain | +10dB | |
| SNR | 131dB A-weighted | |
| THD+N | < 0.000068% @ 1k < 0.000075% @ 20Hz-20kHz |
|
| Frequency response | 20Hz-20kHz (±0.05 / -3dB@85kHz) | |
| Crosstalk | > -150dB | |
| RCA Single-ended | Output impedance | 16Ω |
| Output level | 0-8Vrms Variable | |
| Gain | +10dB | |
| SNR | 127dB A-weighted | |
| THD+N | < 0.000076% @ 1k < 0.000085% @ 20Hz-20kHz |
|
| Frequency response | 20Hz-20kHz (±0.08 / -3dB@83kHz) | |
| Crosstalk | > -139dB | |
| General | |
|---|---|
| Power supply | AC 220V-240V 50/60Hz |
| Max. power consumption | < 60W |
| Standby power consumption | < 5W |
| Dimensions | 430 x 353 x 106mm |
| Weight | 14.6Kg |
| Color | Silver |
| Package | 1x Matrix MS-1 PRE network player 1x RM4B remote control 1x Power supply cable |
