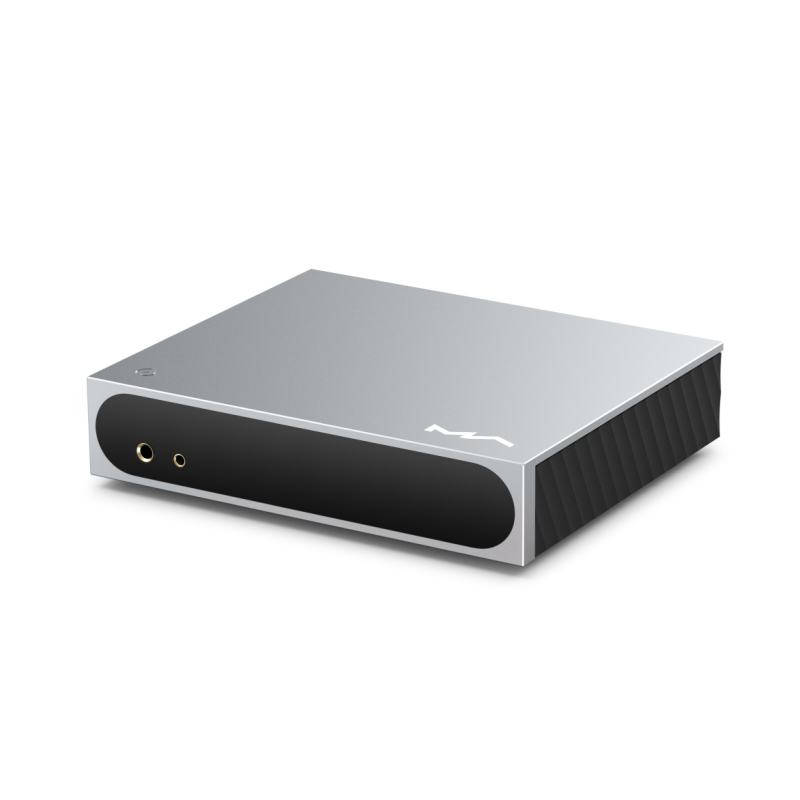

MATRIX AUDIO MINI-I PRO 4
1.199,00 €
Tasse incluse
Consegna 1/3 giorni
STREAMER DI RETE WIFI CON DAC INTEGRATO E AMPLIFICATORE PER CUFFIE
Our privacy policy
Our Privacy Policy explains our principles when it comes to the collection, processing, and storage of your information. This policy specifically explains how we employ cookies, as well as the options you have to control them.
-
1 What are cookies?
Cookies are small pieces of data, stored in text files that are stored on your computer or other device when websites are loaded in a browser. They are widely used to "remember" you and your preferences, either for a single visit or for multiple repeat visits
-
2 How we use cookies
We use cookies for a number of different purposes. Some cookies are necessary for technical reasons; some enable a personalized experience for both visitors and registered users; and some allow the display of advertising from selected third party networks.
-
3 Controlling Cookies
Visitors may wish to restrict the use of cookies or completely prevent them from being set. If you disable cookies, please be aware that some of the features of our service may not function correctly
-
4 Information We Collect
We only collect information about you if we have a reason to do so-for example, to provide our services, to communicate with you, or to make our services better.
We are committed to maintaining the trust and confidence of our website visitors. We do not collect, sell, rent or trade email lists or any data with other companies and businesses. Have a look at our Privacy Policy page to read detail information on when and why we collect your personal information, how we use it, the limited conditions under which we may disclose it to others and how we keep it secure.
We may change Cookies and Privacy policy from time to time. This policy is effective from 24th May 2018.
DETTAGLI
Hardware Platform
|
CPU |
Quad Cortex-A55 2.0GHz |
|
D/A Chip |
ES9039Q2M |
Digital Input
| COAXIAL & OPTICAL |
PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz DSD 2.8MHz (DoP)
|
| HDMI ARC |
PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
|
| USB Audio |
PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz MQA 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz MQA or MQA Studio stream DSD 2.8MHz, 5.6MHz, 11.2MHz (DoP) DSD 2.8MHz, 5.6MHz, 11.2MHz, 22.4MHz (Native) |
Line Output
| XLR |
SNR: 127dB A-weighting THD+N:<0.00008%@1k, <0.00010%@20Hz-20kHz Frequency Response: 20Hz-20kHz ±0.1 -3dB@90kHz Channel Crosstalk: >-146dB Output Level: 4.4VRMS@0dB
|
| RCA |
SNR: 121dB A-weighting THD+N:<0.00015%@1k, <0.00020%@20Hz-20kHz Frequency Response: 20Hz-20kHz ±0.1 -3dB@90kHz Channel Crosstalk: >-133dB Output Level: 2.2VRMS@0dB |
Headphone Output
| 4.4 mm balanced |
SNR: 117dB A-weighting |
|
THD+N:<0.0004%@20Hz-20kHz 4VRMS |
|
|
Frequency Response: 20Hz-20kHz ±0.1 -3dB@90kHz |
|
|
Output Impedance:<22Ω |
|
|
Output Power: 2200mw@33Ω, 950mw@300Ω, 500mw@600Ω, 1%THD |
|
|
Gain: +14dB |
|
| 6.35mm unbalanced |
SNR: 116dB A-weighting |
|
THD+N:<0.0005%@20Hz-20kHz 2VRMS |
|
|
Frequency Response: 20Hz-20kHz ±0.1 -3dB@90kHz |
|
|
Output Impedance:<11Ω |
|
|
Output Power: 1200mW@33Ω, 260mW@300Ω, 130mW@600Ω, 1%THD |
|
|
Gain: +14dB |
Aux Input
|
SNR |
100dB A-weighting |
|
THD+N |
<0.0035%@1k, <0.0035%@20Hz-20kHz |
|
Frequency Response |
20Hz-20kHz ±0.1 -3dB@46kHz |
|
Channel Crosstalk |
>-105dB |
|
Input Level |
2.1VRMS Maximum |
Network
|
LAN |
10/100/1000 Mbps |
|
WLAN |
2.4 GHz / 5 GHz |
USB Type C
|
The USB Type C port provides a maximum power of 5V/1.5A. The USB port works with devices which conform to the USB mass storage standard and supports FAT, FAT32, exFAT and NTFS file formats, but is not guaranteed to be compatible with all storage devices. |
MA Player
|
Controller app： |
MA Remote App |
|
Local Playback |
|
|
Format Supported： |
MP3 , WMA , WAV , AIF, AIFC, AIFF, AAC, FLAC, OGG, APE, ALAC, M4A, DSF, DFF, CUE
|
|
PCM Sampling Rate: |
PCM 16-24Bit 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz |
|
MQA 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz MQA or MQA Studio stream |
|
|
DSD Sampling Rate: |
2.8MHz, 5.6MHz, 11.2MHz, 22.4MHz |
| Roon Ready | |
| PCM Sampling Rate: |
PCM 16-24 Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz |
| MQA 16-24 Bit /44.1 kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz MQA or MQA Studio stream | |
| DSD Sampling Rate: | DSD 2.8MHz, 5.6MHz, 11.2MHz, 22.4MHz |
Power Specs
|
Power Voltage |
AC 100V-240V 50/60Hz |
|
Standby Power Consumption |
< 5W |
|
Maximum Power Consumption |
< 30W |
Weight & Size
|
Weight |
1.3 kg (2.87 pounds) |
|
Size |
Width: 224 mm (8.80 inches) |
|
Depth: 186 mm (7.32 inches) |
|
|
Height: 53 mm (2.07 inches) |
Accessory
|
RM5 remote control |
x1 |
|
Power cable |
x1 |
|
Quick start guide |
x1 |
|
Warranty card |
x1 |
MINI-I PRO 4
