Diamond 12.c

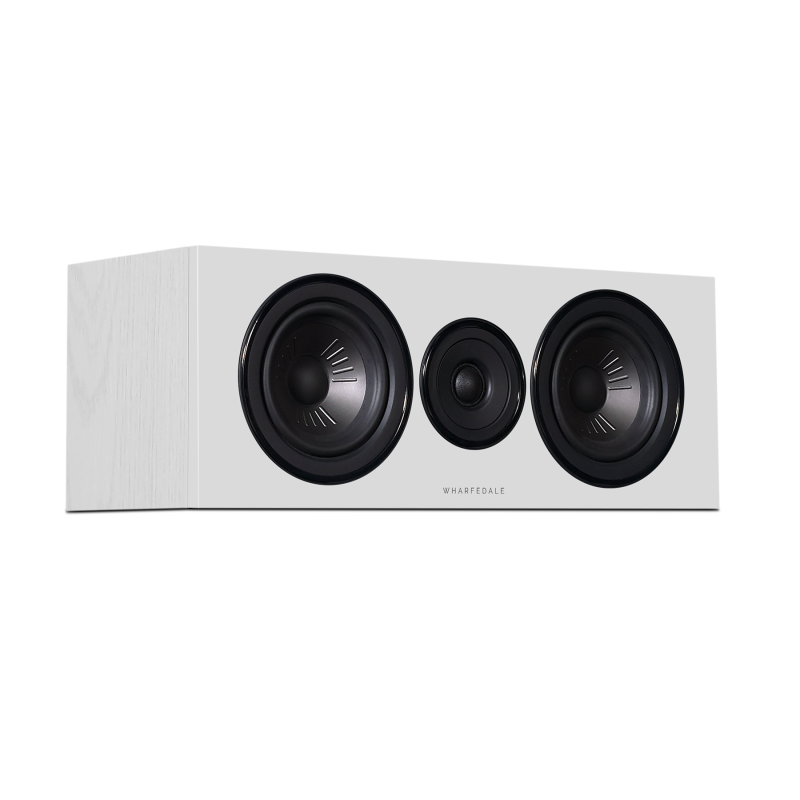

The DIAMOND 12.C brings cinema-quality vocal tangibility and depth to the Wharfedale DIAMOND 12 series home theatre system.
Designed as the centrepiece and perfect complement for the DIAMOND 12 series standmount (bookshelf) and floorstander models, the DIAMOND 12.C is compact, accurate and powerful.
Using dual 130mm (5”) KlarityTM drivers for accurate, refined mid-range and bass frequencies, while the 25mm (1”) dome tweeter delivers open and smoothly extended high frequencies opening up detail and depth for movies, sports and music.
| General description | 2-way bookshelf speaker |
|---|---|
| Enclosure type | closed-box system |
| Transducer complement | 2-way |
| Bass driver | 5"(130mm) advanced PP Cone x2 |
| Treble driver | 1"(25mm) Textile Dome |
| AV shield | No |
| Sensitivity(2.83V @ 1m) | 90dB |
| Recommended amplifier power | 20-120W |
| Peak SPL | 96dB |
| Nominal impedance | 8Ω Compatible |
| Minimum impedance | 4.0Ω |
| Frequency response(+/-3dB) | 90Hz ~ 20kHz |
| Bass extension(-6dB) | 80Hz |
| Crossover frequency | 2.2kHz |
| Cabinet Volume (in litres) | 8.7L |
| Dimensions ( H x W x D ) | 180 x 480 x (180+28) mm |
| Net weight | 8.5kg/pcs |
