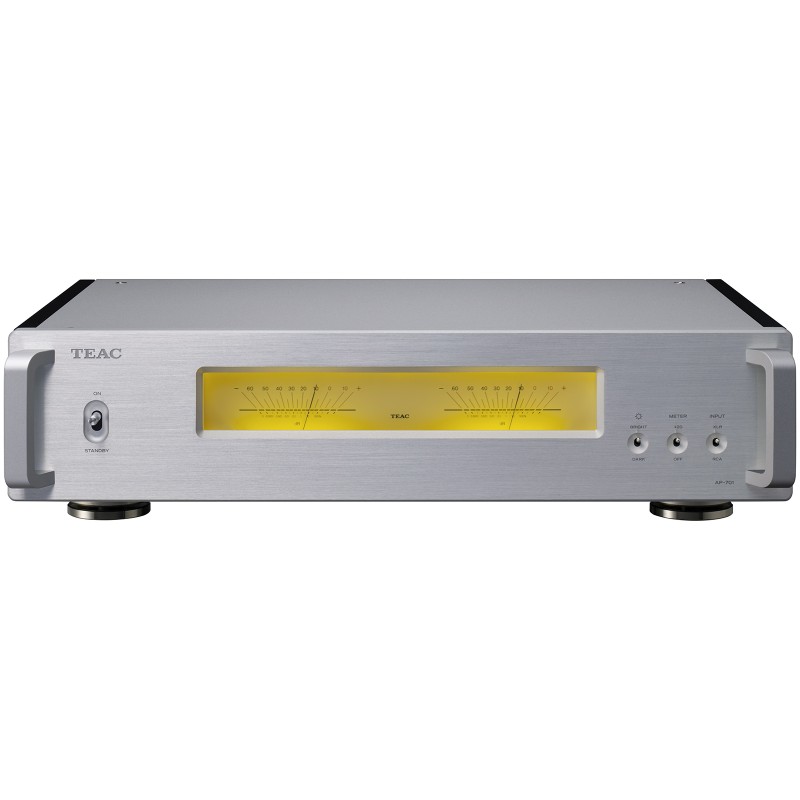

TEAC AP-701
2.190,00 €
Tasse incluse
Consegna 1/3 giorni
STEREO POWER AMPLIFIER
Our privacy policy
Our Privacy Policy explains our principles when it comes to the collection, processing, and storage of your information. This policy specifically explains how we employ cookies, as well as the options you have to control them.
-
1 What are cookies?
Cookies are small pieces of data, stored in text files that are stored on your computer or other device when websites are loaded in a browser. They are widely used to "remember" you and your preferences, either for a single visit or for multiple repeat visits
-
2 How we use cookies
We use cookies for a number of different purposes. Some cookies are necessary for technical reasons; some enable a personalized experience for both visitors and registered users; and some allow the display of advertising from selected third party networks.
-
3 Controlling Cookies
Visitors may wish to restrict the use of cookies or completely prevent them from being set. If you disable cookies, please be aware that some of the features of our service may not function correctly
-
4 Information We Collect
We only collect information about you if we have a reason to do so-for example, to provide our services, to communicate with you, or to make our services better.
We are committed to maintaining the trust and confidence of our website visitors. We do not collect, sell, rent or trade email lists or any data with other companies and businesses. Have a look at our Privacy Policy page to read detail information on when and why we collect your personal information, how we use it, the limited conditions under which we may disclose it to others and how we keep it secure.
We may change Cookies and Privacy policy from time to time. This policy is effective from 24th May 2018.
DETTAGLI
Spec description
| Amplifier section | |
| Practical maximum output | 260W + 260W (4Ω, 1kHz, JEITA) 170W + 170W (8Ω, 1kHz, JEITA) |
| Rated output | 230W + 230W (4Ω, 1kHz, THD 1%) 125W + 125W (8Ω, 1kHz, THD 1%) |
| Total harmonic distortion | 0.003% (8Ω, 1kHz, 55W, JEITA) |
| S/N ratio | 110dB (8Ω, 1kHz, IHF-A) |
| Frequency response | 10Hz to 50,000Hz (+0dB, –6dB, 8Ω, JEITA) |
| Analog audio inputs | |
| Balanced | |
| Connectors | XLR (HOT: 2) × 1 pair |
| Input sensitivity | 1.6V |
| Input impedance | 64kΩ (in STEREO mode), 32kΩ (in BI-AMP mode) |
| Unbalanced | |
| Connectors | RCA (gold-plated) × 1 pair |
| Input sensitivity | 1.6V |
| Input impedance | 32kΩ (in STEREO mode), 16kΩ (in BI-AMP mode) |
| Speaker output | |
| Connectors | Screw type × 1 pair (gold-plate, compatible with Banana plug) |
| Compatible speaker impedance | 4Ω to 8Ω |
| External control | |
| Trigger input (12V TRIGGER IN) | |
| Connector | 3.5mm Mono mini jack × 1 |
| Input level | 12V, 1mA |
| Trigger output (12V TRIGGER THRU) | |
| Connector | 3.5mm Mono mini jack × 1 |
| Power | AC120V, 60Hz AC220 - 240V, 50/60Hz |
| Power consumption | (120V) 97W (230V) 95W |
| Standby power | 0.4W |
| Overall dimensions | 444 (W) × 111.3 (H) × 348.2 (D) mm (including protrusions) |
| Weight | 9.9kg |
| Operating Temperature | ＋5℃ to ＋35℃ |
| Operating Humidity Range | 5% to 85% (no condensation) |
| Storage Temperature Range | –20℃ to ＋55℃ |
| Included accessory | Power cord, Foot pad × 3, Owner's manual |
Features at a glance
- Two Ncore power modules made by Hypex Electronics B.V. And tuned especially for this model
- High output with a practical maximum of 260 W + 260 W (4Ω) / 170 W + 170 W (8Ω)
- Dual mono design throughout entire system
- Clean signal amplification realized with a fully balanced design at the input stage
- Two independent left/right high-capacity toroidal core power supply transformers
- Discrete buffer amplifiers used in the input stage
- Three supporting pinpoint feet that are easy to install (patent numbers 4075477 and 3778108)
- Two linked VU meters which show musical pulse, with four dimmer levels and two sensitivity settings
- Fan-free design to minimize noise
- 12V trigger in and through for power synchronization
AP-701
