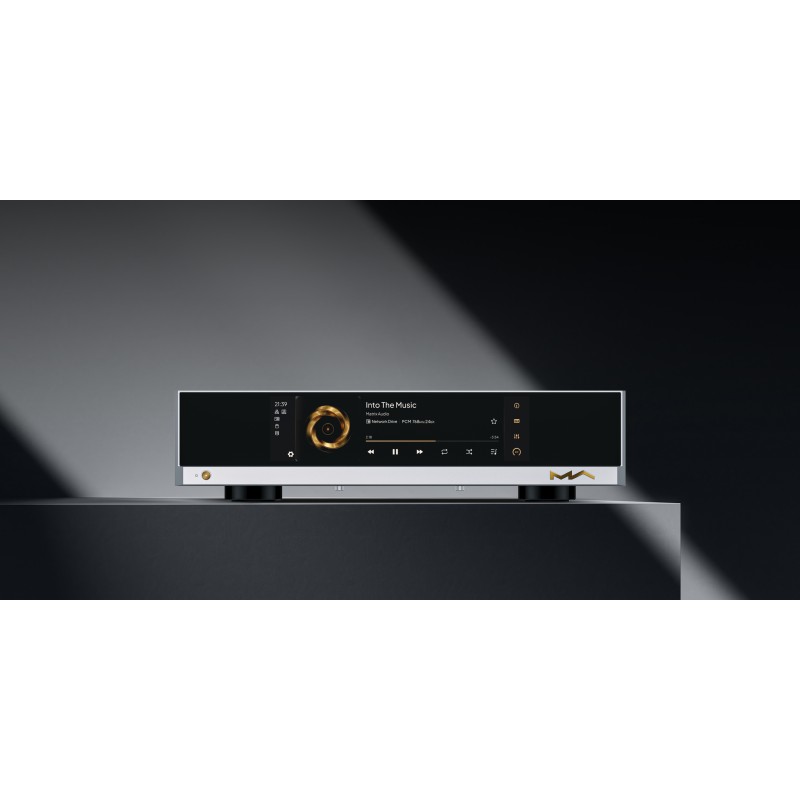

MATRIX AUDIO MS-1
11.999,00 €
Tasse incluse
Consegna 1/3 giorni
STREAMING DI RETE WI-FI END CON DAC INTEGRATO
Our privacy policy
Our Privacy Policy explains our principles when it comes to the collection, processing, and storage of your information. This policy specifically explains how we employ cookies, as well as the options you have to control them.
-
1 What are cookies?
Cookies are small pieces of data, stored in text files that are stored on your computer or other device when websites are loaded in a browser. They are widely used to "remember" you and your preferences, either for a single visit or for multiple repeat visits
-
2 How we use cookies
We use cookies for a number of different purposes. Some cookies are necessary for technical reasons; some enable a personalized experience for both visitors and registered users; and some allow the display of advertising from selected third party networks.
-
3 Controlling Cookies
Visitors may wish to restrict the use of cookies or completely prevent them from being set. If you disable cookies, please be aware that some of the features of our service may not function correctly
-
4 Information We Collect
We only collect information about you if we have a reason to do so-for example, to provide our services, to communicate with you, or to make our services better.
We are committed to maintaining the trust and confidence of our website visitors. We do not collect, sell, rent or trade email lists or any data with other companies and businesses. Have a look at our Privacy Policy page to read detail information on when and why we collect your personal information, how we use it, the limited conditions under which we may disclose it to others and how we keep it secure.
We may change Cookies and Privacy policy from time to time. This policy is effective from 24th May 2018.
DETTAGLI
Ingressi Digitali
COASSIALE & OTTICO
• PCM 16-24Bit / 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
• DSD 2.82MHz, 3.07MHz (DoP)
IIS LVDS
• PCM 16-32Bit / 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz,
705.6kHz, 768kHz
• DSD 2.82MHz, 3.07MHz, 5.64MHz, 6.14MHz, 11.29MHz, 12.29MHz (DoP)
• DSD 2.82MHz, 3.07MHz, 5.64MHz, 6.14MHz, 11.29MHz, 12.29MHz, 22.58MHz, 24.58MHz,
45.16MHz, 49.15MHz (Native)
USB Audio
• PCM 16-24Bit / 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz,
705.6kHz, 768kHz
• MQA 16-24Bit / 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz – MQA
o MQA Studio stream
• DSD 2.82MHz, 5.64MHz, 11.29MHz (DoP)
• DSD 2.82MHz, 3.07MHz, 5.64MHz, 6.14MHz, 11.29MHz, 12.29MHz, 22.58MHz, 24.58MHz
(Native)
Uscite Digitali
IIS LVDS
• PCM 16-32Bit / 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz,
705.6kHz, 768kHz
• DSD 2.82MHz, 3.07MHz, 5.64MHz, 6.14MHz, 11.29MHz, 12.29MHz, 22.58MHz, 24.58MHz,
45.16MHz, 49.15MHz (Native)
Ingressi Analogici
XLR
• Impedenza d’ingresso: 40kΩ
• SNR: 118dB pesato-A
SPECIFICHE TECNICHE MATRIX MS-1
• THD+N: < 0.00026% @ 1kHz, < 0.00030% @ 20Hz-20kHz
• Risposta in frequenza: 20Hz-20kHz ±0.3 -3dB @ 46kHz
• Crosstalk: > -135dB
• Livello d’ingresso: massimo 4.9VRMS
RCA
• Impedenza d’ingresso: 20kΩ
• SNR: 110dB pesato-A
• THD+N: < 0.00060% @ 1kHz, < 0.00100% @ 20Hz-20kHz
• Risposta in frequenza: 20Hz-20kHz ±0.3 -3dB @ 46kHz
• Crosstalk: > -125dB
• Livello d’ingresso: massimo 2.35VRMS
Phono
MM Mode
• Impedenza d’ingresso: 47kΩ/100pF
• Guadagno: +45dB
MC Mode
• Impedenza d’ingresso: 100Ω
• Guadagno: +65dB
Uscite Analogiche
Uscita di linea – XLR
• Impedenza d’uscita: 20Ω
• Livello d’uscita: 5VRMS fisso
• SNR: 131dB Pesato-A
• THD+N: < 0.000068% @ 1kHz, < 0.000075% @ 20Hz-20kHz
• Risposta in frequenza: 20Hz-20kHz ±0.05 -3dB @ 85kHz
• Crosstalk: > -150dB
Uscita Pre
XLR
Impedenza d’uscita: 40Ω
• Livello d’uscita: 0~16VRMS regolabile
• Guadagno: +10dB
• SNR: 131dB pesato-A
• THD+N: < 0.000068% @ 1kHz, < 0.000075% @ 20Hz-20kHz
• Risposta in frequenza: 20Hz-20kHz ±0.05 -3dB @ 85kHz
• Crosstalk: > -150dB
RCA
• Impedenza d’uscita: 16Ω
• Livello d’uscita: 0~8VRMS regolabile
• Guadagno: +10dB
• SNR: 127dB A-weighting
• THD+N: < 0.000076% @ 1kHz, < 0.000085% @ 20Hz-20kHz
• Risposta in frequenza: 20Hz-20kHz ±0.08 -3dB @ 83kHz
• Crosstalk tra canali: > -139dB
Rete
• LAN: 10/100/1000 Mbps
• SFP: 10/100/1000 Mbps
USB
• USB 3.0 x2
o La porta USB fornisce una potenza massima di 5V/1.5A.
o La porta USB funziona con dispositivi conformi allo standard USB mass storage e
supporta i formati FAT, FAT32, exFAT e NTFS, ma la compatibilità con tutti i dispositivi di
archiviazione non è garantita.
Ingresso Clock Esterno
Trigger
SPECIFICHE TECNICHE MATRIX MS-1
• Trigger in: DC 6-12V, <10mA
• Trigger out: DC 12V, massimo 50mA
Estensione Memoria
• Slot M.2 2280 NVMe PCIe SSD x 1
MA Player
• Controller app: MA Remote App
• Riproduzione locale
o Formati supportati: MP3, WMA, WAV, AIF, AIFC, AIFF, AAC, FLAC, OGG, APE, ALAC,
M4A, DSF, DFF, CUE
o PCM: 16-24Bit / 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz,
384kHz, 705.6kHz, 768kHz
o MQA: 16-24Bit / 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz,
384kHz – MQA o MQA Studio stream
o DSD: 2.82MHz, 3.07MHz, 5.64MHz, 6.14MHz, 11.29MHz, 12.29MHz, 22.58MHz,
24.58MHz
• Roon Ready
o PCM: 16-24Bit / 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz,
384kHz, 705.6kHz, 768kHz
o MQA: 16-24Bit / 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz,
384kHz – MQA o MQA Studio stream
o DSD: 2.82MHz, 3.07MHz, 5.64MHz, 6.14MHz, 11.29MHz, 12.29MHz, 22.58MHz
• AirPlay 2
• DLNA/UPnP
• TIDAL Connect
• Spotify Connect
• vTuner
• Radio Paradise
Specifiche di Alimentazione
• Tensione di alimentazione:
o AC 100V-120V 50/60Hz o AC 220V-240V 50/60Hz (Fissata in fabbrica)
• Consumo in standby: < 5W
• Consumo massimo: < 60W
Peso e Dimensioni
• Peso: 14.6kg (32.2 libbre)
• Dimensioni:
o Larghezza: 430 mm (16.93 pollici)
o Profondità: 353 mm (13.90 pollici)
o Altezza: 106 mm (4.17 pollici)
Accessori
• Telecomando RM4B x 1
• Cavo di alimentazione x 1
• Manuale utente x 1
• Scheda di garanzia x 1
MS-1
