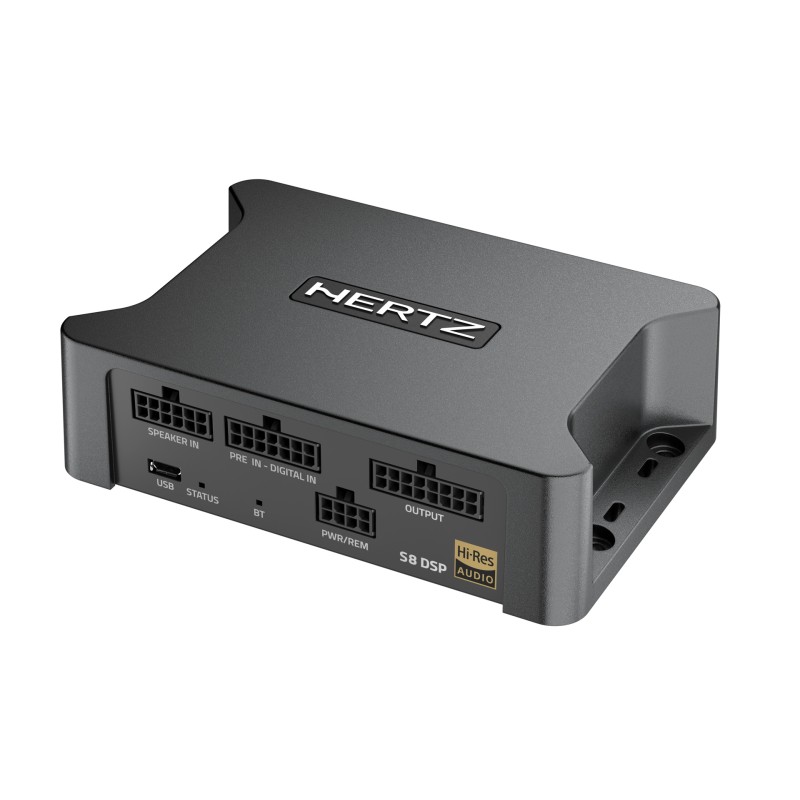

HERTZ S8 DSP
549,00 €
Tasse incluse
Consegna 1/3 giorni
PROCESSORE DIGITALE CAR AUDIO
Our privacy policy
Our Privacy Policy explains our principles when it comes to the collection, processing, and storage of your information. This policy specifically explains how we employ cookies, as well as the options you have to control them.
-
1 What are cookies?
Cookies are small pieces of data, stored in text files that are stored on your computer or other device when websites are loaded in a browser. They are widely used to "remember" you and your preferences, either for a single visit or for multiple repeat visits
-
2 How we use cookies
We use cookies for a number of different purposes. Some cookies are necessary for technical reasons; some enable a personalized experience for both visitors and registered users; and some allow the display of advertising from selected third party networks.
-
3 Controlling Cookies
Visitors may wish to restrict the use of cookies or completely prevent them from being set. If you disable cookies, please be aware that some of the features of our service may not function correctly
-
4 Information We Collect
We only collect information about you if we have a reason to do so-for example, to provide our services, to communicate with you, or to make our services better.
We are committed to maintaining the trust and confidence of our website visitors. We do not collect, sell, rent or trade email lists or any data with other companies and businesses. Have a look at our Privacy Policy page to read detail information on when and why we collect your personal information, how we use it, the limited conditions under which we may disclose it to others and how we keep it secure.
We may change Cookies and Privacy policy from time to time. This policy is effective from 24th May 2018.
DETTAGLI
Specifiche generali
| POWER SUPPLY | |
|---|---|
| Nominal Power supply voltage / fuse: | 7 ÷ 20 VDC / 1A |
| Pulse operating voltage: | 5 ÷ 24 VDC |
| Idling current: | 0.34 A |
| OFF current (ART= OFF): | <80 uA |
| OFF current (ART= ON): | <80 uA |
| Remote IN | 6 ÷ 20 VDC (10 mA) |
| Remote OUT | 4 ÷ 20 VDC (150 mA) |
| ART - Automatic Remote Turn on/off from BTL speaker outputs (selectable): | 1.5 ÷ 7 VDC |
Input Stage
| Analog low level Inputs | 6 ch. (Differential input) (Molex microfit to RCAs) |
| Analog high level Inputs | 6 ch. (Differential input) (Molex microfit to tripped ends) + USS (Universal Speakers Simulator) |
| Digital inputs | Yes (Coaxial SPDIF; up to 24bit 96KHz) (Molex microfit to RCA) |
| Input sensitivity (low level) | 0.8V – 6V RMS |
| Input sensitivity (high level) | 2.5V – 21V RMS |
| Analog inputs management | Audio input routing matrix type |
| Analog inputs eq | 7 bands paragraphic for each input channel |
| ART | Automatic Remote Turn-On/Off with Speaker-In |
Output Stage
| Analog outputs (rca) | 8 channels |
| Max output level (rms) @ 0.05% THD | 4V |
| Analog outputs management | The DSP controls each output channel: gain, crossover, EQ, delay, polarity |
| Bandwidth | 10Hz – 40KHz (+/-3db) |
| Signal to noise ratio (A weighted) | 105dBA (Analog Input) 112dBA (Digital Input) |
| THD+N (@ 1Vrms out, @ 1Khz) | <0.005% |
| Crosstalk (channel separation) @ 1KHz | >95dBA |
Processore di segnale digitale
| Sample rate | 96KHz |
| Bit depth | 24 |
| Output equalizer | 15 bands per channel w/ adjustable Q and Frequency |
| Equalizer resolution | 1/10th dB per step +12dB / -12dB |
| Time alignment (distance) | 0 ÷ 468.4 cm / 0 ÷ 184.4 inches |
| Time alignment (time) | 0 ÷ 13.5ms |
| Time alignment (step) | 0,08 ms; 2,8 cm / 1.1 inch |
| Time alignment (fine set) | 0,02 ms; 0,7 cm / 0.27 inch |
| Crossovers | AP/HP/LP/BP all channels |
| Crossover type | Butterworth, Linkwitz-Riley, Bessel (All Channels) |
| Crossover slope | From 6dB/oct. until 30dB/oct. (6dB step) |
| Crossover steps | 120 steps 20Hz-20KHz |
| Mute function | Each channel individually, or all channels. |
| Presets | 4 presets |
| Presets selection | 2 specific wires to control the 4 presets selection by extarnal switches. |
| Input selection by wire | One specific wire to select the desired input between Analog or Digital. |
| Audio signal compressor on output stage | Yes (enable/disable) |
| DSP chipset | Analog Device: ADAU1451 |
| DSP management by bt app (iOS/ Android) | 1. CONFIGURATOR mode Mainly it’ll allow the DSP tuning. You can manage every DSP functon through your smartphone/ tablet/PC/MAC. 2. DRC mode The BT device becomes a remote control by using the dedicated app with a simple graphical user interface. Manage volume level, SUB level, select different setup files, upload a new setup file. |
| Setup file sharing via bt | Upload a setup file via BT through the BT APP when in “Configurator” or “DRC” mode. |
| DSP management by pc / mac / ios / android | Microsoft Windows (32/64 bit): Windows 10 (USB and BT BLE) Windows 11 (USB and BT BLE) Mac Os: 10.13 Hight Sierra or later (USB and BT BLE) |
