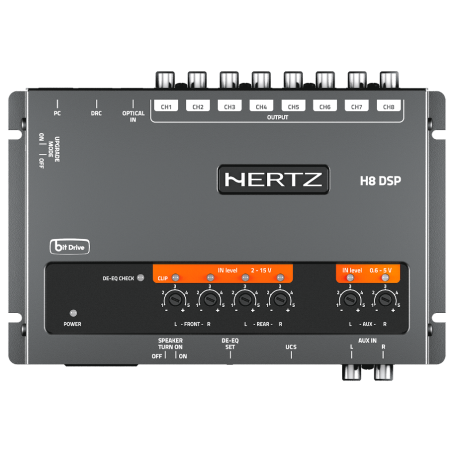

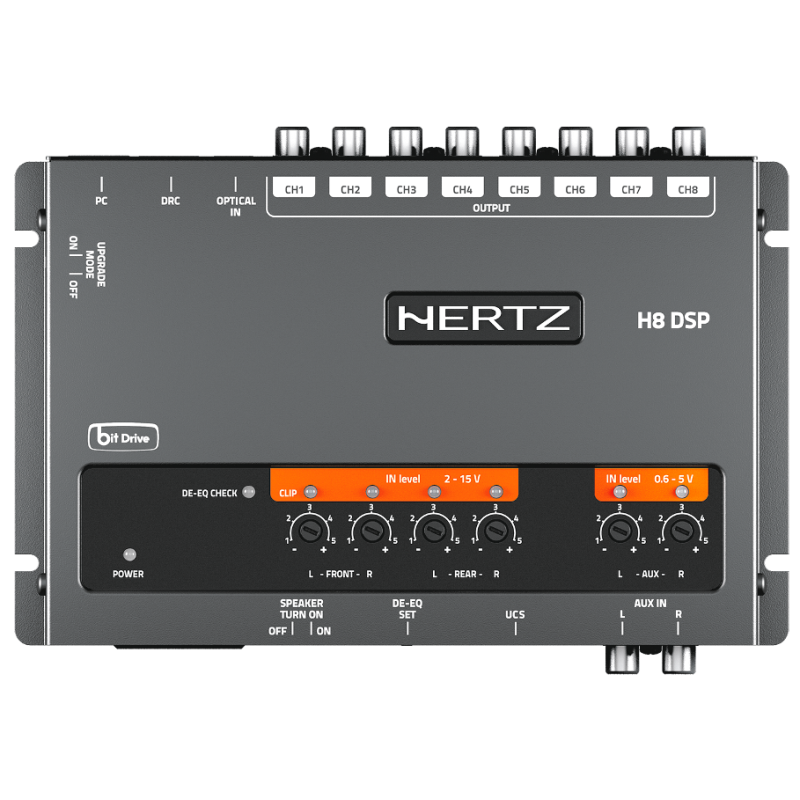

HERTZ H8 DSP
429,00 €
Tasse incluse
Consegna 1/3 giorni
PROCESSORE DIGITALE CAR AUDIO
Our privacy policy
Our Privacy Policy explains our principles when it comes to the collection, processing, and storage of your information. This policy specifically explains how we employ cookies, as well as the options you have to control them.
-
1 What are cookies?
Cookies are small pieces of data, stored in text files that are stored on your computer or other device when websites are loaded in a browser. They are widely used to "remember" you and your preferences, either for a single visit or for multiple repeat visits
-
2 How we use cookies
We use cookies for a number of different purposes. Some cookies are necessary for technical reasons; some enable a personalized experience for both visitors and registered users; and some allow the display of advertising from selected third party networks.
-
3 Controlling Cookies
Visitors may wish to restrict the use of cookies or completely prevent them from being set. If you disable cookies, please be aware that some of the features of our service may not function correctly
-
4 Information We Collect
We only collect information about you if we have a reason to do so-for example, to provide our services, to communicate with you, or to make our services better.
We are committed to maintaining the trust and confidence of our website visitors. We do not collect, sell, rent or trade email lists or any data with other companies and businesses. Have a look at our Privacy Policy page to read detail information on when and why we collect your personal information, how we use it, the limited conditions under which we may disclose it to others and how we keep it secure.
We may change Cookies and Privacy policy from time to time. This policy is effective from 24th May 2018.
DETTAGLI
Specifiche generali
| POWER SUPPLY | |
| Operating power supply voltage | 10.8 ÷ 14.4 VDC |
| Power supply | 7.5 ÷ 15 VDC |
| Idling current | 0,4 A |
| Switched off without DRC | 2,5 mA |
| Switched off with DRC | 4 mA |
| Remote IN voltage | 6,5 ÷ 15 VDC (1,3 mA) |
| Remote OUT voltage | 12 VDC (130 mA) |
Specifiche audio
| Distortion - THD @ 1 kHz, 1V RMS Output | 0,005% |
| Bandwith @ -3 dB | 10 ÷ 22k Hz |
| S/N Ratio @ A weighted Digital input Master Input AUX Input 96 |
105 dBA 95 dBA 96 dBA |
| Channel Separation @ 1 kHz | 85 dB |
| Input sensitivity (Speaker In/ Pre in) | 2 ÷ 15 V RMS |
| Input sensitivity (AUX In) | 0,6 ÷ 5 V RMS |
| Input impedance (Speaker In) | 5 Ω |
| Input impedance Pre In | 2,2 kΩ |
| Input impedance (AUX) | 15 kΩ |
| Max Output Level (RMS) @ 0.1% THD | 4 V RMS |
Processore di segnale digitale
| INPUT STAGE | |
| Master (Speaker In/Pre in) | FL - FR - RL - RR |
| Aux (Pre in) | Left - Right |
| Digital Optical IN (S/PDIF max 96 kHz/24bit) | OPTICAL IN |
| OUTPUT STAGE | |
| Low Level Pre (default) | FRONT TW L/R, FRONT WF L/R REAR L/R, SUB, CENTER |
| CONNECTIONS | |
| From / To Personal Computer | 1 x USB / B |
| DRC HE | Audio controls and Memory / Inputs selection |
| Optical / AUX select | Optical In / Aux wire control + 12V / GND enable |
| Memory A / Memory B | Memory A / B wire control + 12V / GND enable |
| CROSSOVER N.8 (one for each output channel) | |
| Filter Type | Full / High Pass / Low Pass / Band Pass |
| Filter mode and slope | Linkwitz @ 12 / 24 dB Butterworth @ 6 / 12 / 18 / 24 dB |
| Crossover frequency | 68 steps @ 20 ÷ 20k Hz |
| Phase control | 0° ÷ 180° |
| EQUALIZER | |
| On Hi-Levels input (Speaker In) | Automatic De-Equalization On |
| Outputs | N.8 Graphic: ±12 dB @ 31 Band ISO 1/3 Oct. 20 ÷ 20k Hz |
| TIME ALIGNMENT | |
| Distance | 0 ÷ 510 cm / 0 ÷ 200.8 inch |
| Delay | 0 ÷ 15 ms |
| Step | 0.08 ms; 2,8 cm / 1.1 inch |
| Fine set | 0.02 ms; 0,7 cm / 0.27 inch |
